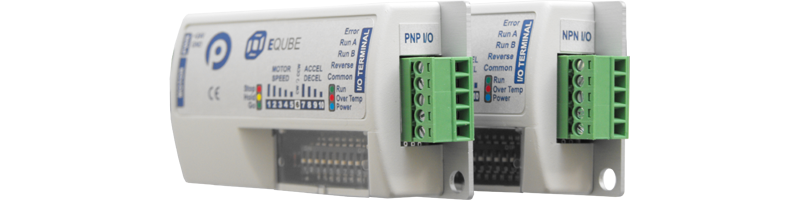

E-Qube Ai

EQube Ai is an economical single motor, drive controller module for Senergy Motors. EQube Ai provides control for the motor in ECO mode. Speed, acceleration & deceleration are adjustable using combinations of DIP switches on the module.

Motors may be run ClockWise (CW) or Counter ClockWise (CCW) using digital inputs to the controller terminals. A motor/-module error output is available for connection to user controls.

The core of this system is the Powered Roller Control Module, which is designed using smart functions that are built into the module and provide control of various operational modes of the drive motor.


  • 20V – 30VDC operation
  • Senergy – Ai Eco mode drive
  • 2 Run signals for 3 different speeds
  • Dir input, Error output
  • 32 speeds, 16 accel/decel selectable
  • 0°C – 50°C operation
  • Dimension: 100mm x 44mm x 21mm
