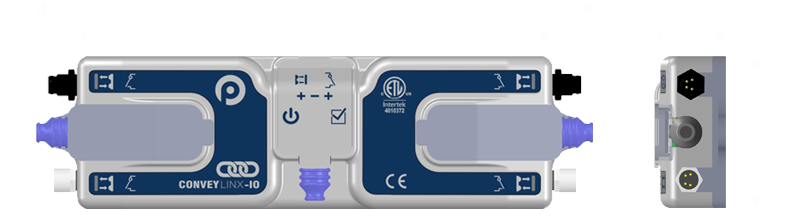

ConveyLinx-IO
ConveyLinx-IO is general purpose remote IO, which supports PROFINET, Ethernet IP and ModBus TCP. It have 8 I/O pins, which can be individually configured as Inputs or Outputs.
  • 8 I/O which can be individually programmed as Inputs or Outputs
  • Max current drive of outputs - 400mA
  • 4 x M8 connectors, each with 2 I/Os
  • Build in Ethernet swicth
  • 18 to 30 VDC power supply
  • -40°C to +50°C operation
  • Dimension: 206mm x 56mm x 26mm
  • IP54 protection rate
  • Separate power supply terminal of Outputs for simplified e-stop functionality
  • Electromagnetic capability: IEC 801
Firmware



ConveyLinx-IO Firmware
Version: 5.4.5
Size: 400 KB
Additional Files



ConveyLinx-IO GSDML
Compatibility:
Size: 8,02 KB
Literature



ConveyLinx-IO Specification
(complete documentation in PDF format )
SSize: 743 KB
